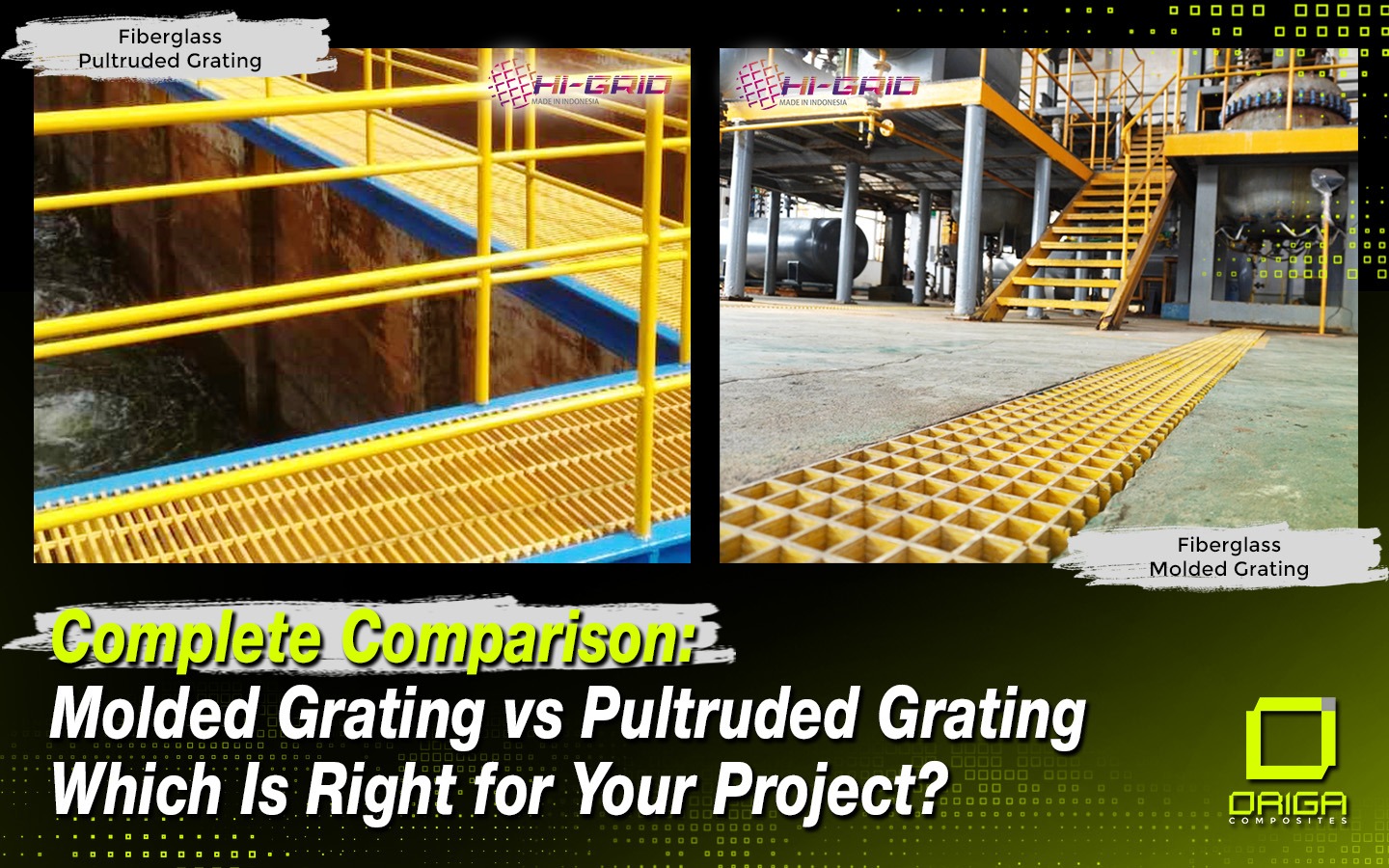

In the world of construction and infrastructure, selecting the right material is crucial to ensuring efficiency, durability, and safety. Fiberglass Reinforced Plastic (FRP) Grating is one of the modern materials widely used due to its advantages. However, the two main types of FRP grating, Molded Grating and Pultruded Grating, often raise the question: which is better for your needs? This article will discuss the differences between the two to help you make the best decision.
Production Process
- Molded Grating: Molded grating is made by molding thermoplastic resin and glass fibers into a grid-patterned mold. Once hardened, the result is a grating panel that matches the size and dimensions of the mold.
- Pultruded Grating: Pultruded grating is manufactured through the pultrusion process, where glass fibers and thermoplastic resin are continuously pulled through a specialized machine to form various profiles. These profiles are then carefully assembled into sturdy grating structures with vertical and horizontal reinforcements.
Material Composition
- Molded Grating: FRP essentially consists of a mix of resin and fiber. For molded grating, the material comprises a mixture of resin, additives, and color pigments (Resin Mix) combined with fiber roving (Glass Content).
- Pultruded Grating: Like molded grating, FRP consists of a resin and fiber mix. However, the composition of pultruded grating includes a blend of resin, additives, and color pigments (Resin Mix) combined with glass fiber roving and mat (Glass Content).
Strength
- Molded Grating: With a higher proportion of resin mix compared to glass content, molded grating tends to be more elastic and has greater bending values. However, the strength of this grating can be optimized through appropriate thickness selection and support placement to determine the required span.
- Pultruded Grating: Conversely, with a higher glass content ratio compared to resin mix, pultruded grating possesses very high strength. This grating is specifically designed for use in areas with heavy structural loads.
Corrosion Resistance
Both types of grating offer excellent corrosion resistance, especially in chemical or wet environments. However, molded grating is generally more resistant to aggressive chemicals due to its higher resin mix content, which protects the fiber better. This gives molded grating longer durability and better resistance to chemical exposure.
Impact Resistance
Both types of grating exhibit excellent impact resistance. The grating thickness can be adjusted to the impact load—greater impact loads require thicker grating.
Anti-Slip Surface
Both can be equipped with anti-slip surfaces, but molded grating is often more effective due to its coarser grid pattern.
Applications
- Molded Grating:
Suitable for applications in corrosive environments such as chemical plants, shipyards, or installations near seawater.
Ideal for areas with pedestrian traffic or light to moderate loads. - Pultruded Grating:
A perfect choice for applications with high loads such as small bridges, industrial platforms, or pipeline pathways.
Used in locations requiring long panels with minimal support.
Cost and Efficiency
- Molded Grating: Generally more economical due to its simpler, faster, and more efficient production process.
- Pultruded Grating: More expensive than molded grating due to its manufacturing process, which involves several stages such as profile molding, drilling, and assembly, requiring more time.
Choose the Right One for Your Project
The choice between molded and pultruded grating depends on the specific needs of your project:
- Choose Molded Grating if you require high corrosion resistance, fast production, and affordable costs.
- Choose Pultruded Grating if your project requires longer panels and high structural strength.
By understanding these differences, you can ensure that the selected FRP grating not only meets technical requirements but also adds value to your investment. For more information or product consultations, feel free to contact a trusted FRP grating provider.
